distal femur

The information presented is intended for use as a demonstration for products contract manufactured by Orthomedic. The appropriate treatment, technique(s) and product(s) for each individual patient are to be determined by the treating surgeon.

Providing an optimal solution for complex fractures at the distal femur.

Intended Use

4.5/5.0 MM LCP Distal Femur Plates are intended for internal fixation and stabilization of osteotomies, nonunions, malunions and fractures of distal femur, including supracondylar, intra-articular and extra-articular condylar, as well as fractures in normal or osteopenic bone.

Features and Benefits

4.5/5.0 MM LCP Distal Femur Plates are part of the Large Fragment LCP System. They are designed to provide the surgeon maximum flexibility with the use of fixed-angle locking and non-locking screw options. The result is fracture fixation based on each individual patient’s fracture type, bone quality and anatomy.

The plates are available in stainless steel and titanium, with 5, 7, 9, 11, and 13 holes for left and right femurs.
distal femur
1

Preshaped Plate

Anatomically contoured plates are precontoured to create a fit that requires little or no additional bending and facilitates better soft tissue coverage.
2

Rounded Plate Tip

Rounded and tapered plate tip permits a minimally invasive surgical technique.
3

K-Wire Holes

Allows primary or temporary plating for fracture fixation.
4

Locking Holes in Plate Head

Multiple threaded locking holes in the plate head allows placement of Locking Head Screw 5.0 mm and Cortex Screw 4.5 mm to capture fragments. The central locking screw hole provides initial reduction of the plate to the condyles.
5

Oblong combi-hole

Combi holes accommodate Locking Head Screw 5.0 mm or Cortex Screw 4.5 mm, or a combination of both, providing comprehensive selections for flexible intraoperative technique.
6

Anatomically Contoured

Thick-to-thin plate profiles make the plates autocontourable.

The anatomical shape of the head of the plate matches the shape of the distal femur.
4.5/5.0 MM LCP Distal Femur Plate
distal femur

SCREWS
Locking Head Screw 5.0 mm
Locking Head Screw 5.0 mm

Locking Head Screw 5.0mm, Self-Tapping, 14mm-90mm Length (2mm increments from Length 14mm onwards, 5 mm increment from Length 50 mm onwards)


Features

- Create a locked, fixed-angle screw/plate construct.
- Self-tapping tip.
- Threaded conical head.
- Fully-threaded shaft.

Cortex Screws 4.5 mm Self-tapping
Cortex Screws 4.5 mm Self-tapping

Cortex Screw, 4.5mm, Self-Tapping, 12mm-80mm Length (2mm increments)


Features

- Compress the plate to the bone or create axial compression.
- Self-tapping tip.
- May be used in the DCU portion of the Combi holes in the plate shaft.

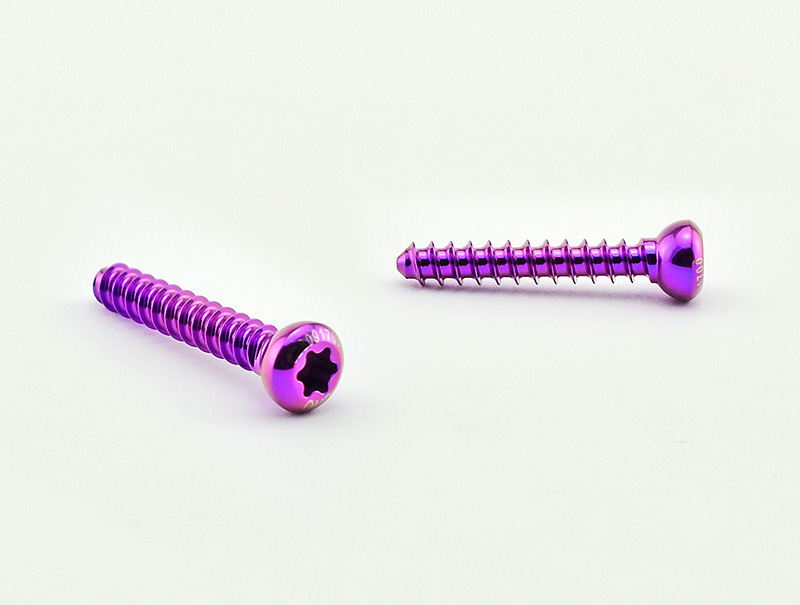

Cortex Screws 4.5 mm
Cortex Screws 4.5 mm

Cortex Screw, 4.5mm, 14mm-80mm Length (2mm increments)


Features

- Compress the plate to the bone or create axial compression.
- May be used in the DCU portion of the Combi holes in the plate shaft.

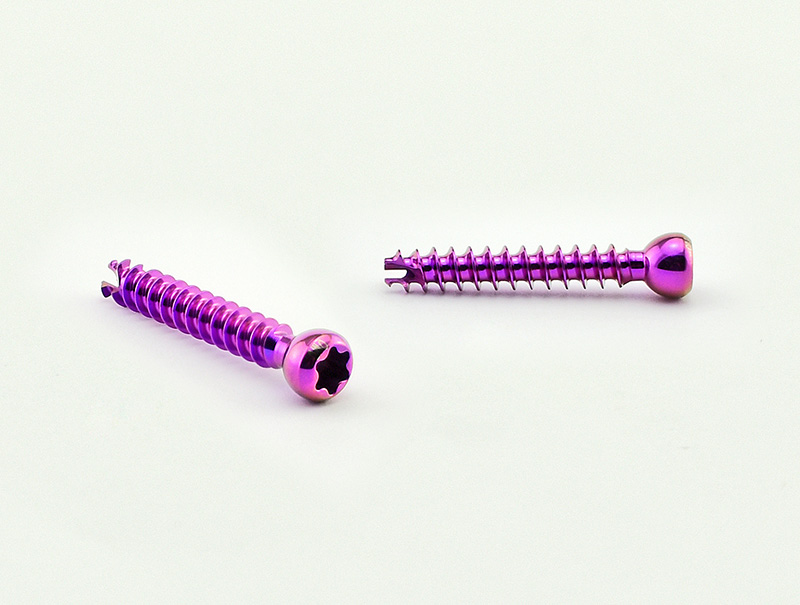

Cannulated Screw 4.5 mm
Cannulated Screw 4.5 mm

Cannulated Screw, 4.5mm, Fully Threaded, 20mm-80mm Length (2mm increments from Length 20mm onwards, 4mm increments from Length 60mm onwards)


Features

- Self-tapping tip facilitates screw insertion.
- Cancellous thread profile consists of deep cutting threads with a large pitch, which accelerates screw insertion and removal.
- Reverse-cutting flutes aid in screw removal.

Cannulated Screw 4.5 mm
Cannulated Screw 4.5 mm

Cannulated Screw, 4.5mm, Short Thread, 20mm-80mm Length (2mm increments from Length 20mm onwards, 4mm increments from Length 60mm onwards)


Features

- Self-tapping tip facilitates screw insertion.
- Cancellous thread profile consists of deep cutting threads with a large pitch, which accelerates screw insertion and removal.
- Reverse-cutting flutes aid in screw removal.
