clavicle

The information presented is intended for use as a demonstration for products contract manufactured by Orthomedic. The appropriate treatment, technique(s) and product(s) for each individual patient are to be determined by the treating surgeon.

Providing comprehensive solutions for fracture management of the lateral clavicle and clavicle shaft.

Intended Use

2.7/3.5 MM LCP Superior Anterior Clavicle Plates are intended to provide an superior anterior approach for the treatment of non-unions, malunions, and fractures of the medial, midshaft, and lateral clavicle.

Features and Benefits

2.7/3.5 MM LCP Superior Anterior Clavicle Plates are anatomically contoured, which increase screw purchase in the clavicle and act as a template for anatomic restoration. The low-profile design may aid to minimize postoperative soft tissue irritation.

The plates are available in stainless steel and titanium, with 5,6,7 and 8 holes for left and right side of the clavicle.
clavicle
1

Diverging Screws

Diverging screws in lateral holes give good screw purchase and increase pull out strength.
2

Shaft Holes

The shaft holes accommodate Locking Head Screw 3.5 mm or Cortex Screw 3.5 mm
3

Plate Contouring

Reconstruction plate segments allow any necessary plate contouring
4

Lateral Holes

Lateral holes accommodate Locking Head Screw 2.7 mm or Cortex Screw 2.4 mm.
5

Shaft with Notches

Notches on the underside of the shaft aids in preventing blood supply limitation
6

Tapered Tip

Tapered plate tip aids in percutaneous insertion.
2.7/3.5 MM LCP Superior Anterior Clavicle Plate
clavicle

SCREWS
Locking Head Screw 2.7 mm
Locking Head Screw 2.7 mm

Locking Screw 2.7 mm, Torx, Self-Tapping, 6mm-50mm (2mm increments from Length 20 mm onwards, 5mm increments from Length 30mm onwards)


Features

- Threaded screw head locks securely into the threaded holes of the plate to provide a locked construct & angular stability.
- Self-tapping tip.
- Torx recess mates with self-retaining screwdriver.

Cortex Screw 2.4 mm
Cortex Screw 2.4 mm

Cortex Screw, Torx, 2.4mm, Self-Tapping, 6mm-30mm Length (2mm increments from Length 20mm onwards)


Features

- For use in round or Combi holes.
- Low-profile head in the plate holes.
- To provide compression or neutral fixation.

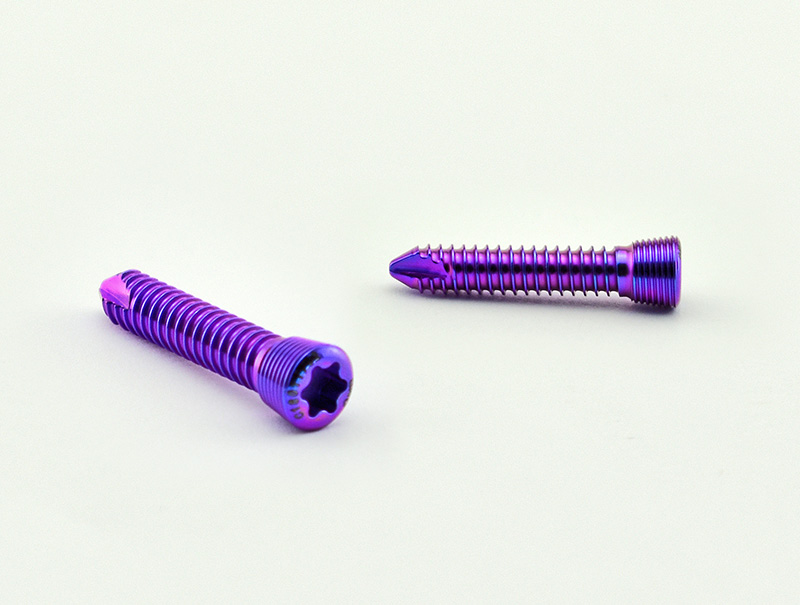

Locking Head Screw 3.5 mm
Locking Head Screw 3.5 mm

Locking Head Screw 3.5mm Self Tapping, 10-80mm Length (2mm increments from Length 10mm, 5mm increments from Length 30mm)


Features

- Self-tapping tip.
- Create a locked, fixed-angle screw/plate construct.
- Used in the locking portion of the Combi holes or in round locking holes.

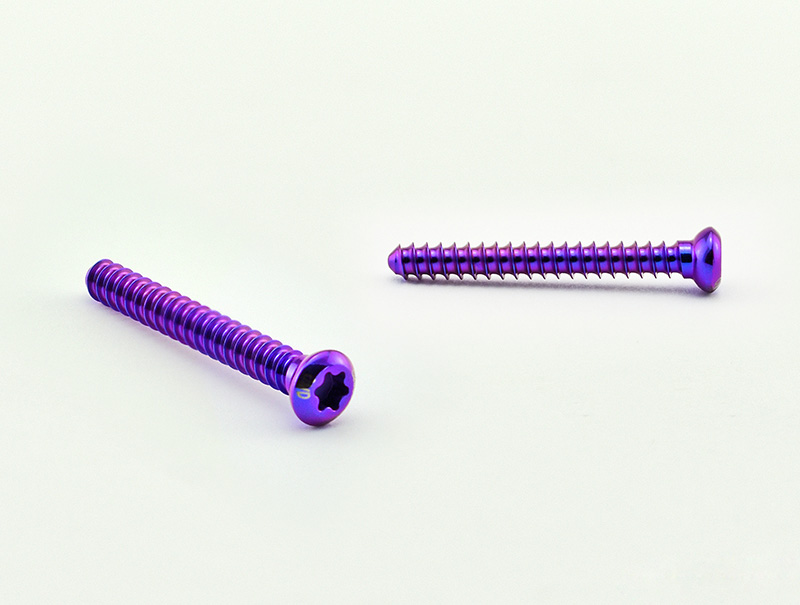

Cortex Screw 3.5 mm
Cortex Screw 3.5 mm

Cortex Screw 3.5mm Self Tapping, 10-50mm Length (2mm increments)


Features

- Compress the plate to the bone or create axial compression.
- May be used in the DCU portion of Combi holes.
